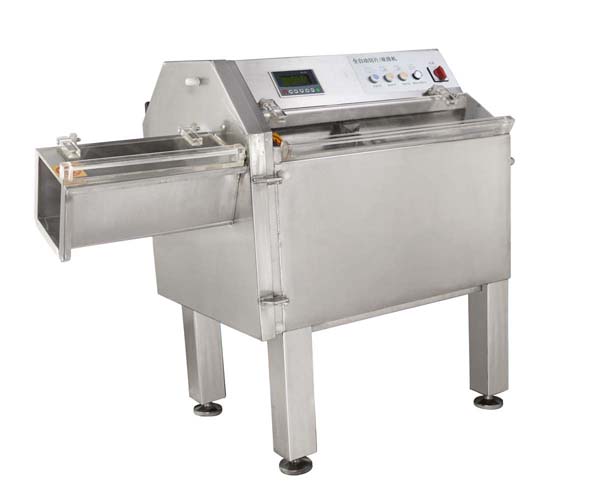

自动切片/砍排机产品简介

Automatic slicing / cut exhaust machine

一、产品概述

A, product overview

自动切片/砍排机是肉类制品生产制作工艺中的一个重要设备，适用于把冷冻（—4°C）的肉类，香肠、干酪、鱼制品，整机，整鸭切成片，也可用作砍排机将排骨切成片。

Automatic slicing / cut row machine is an important equipment in the production of meat products in the manufacturing process, suitable for the freezing (4 degrees C) meat, sausage, cheese, fish products, whole, whole duck cut into pieces, can also be used as cut row machine will chop into pieces.

本厂生产的切片/砍排机，采用连续切割方式，有效保证切片质量，设备成本低，生产效率高，适用于中小型企业，宾馆，饭店及超市使用。

The factory production of the slice / cut row machine, using a continuous cutting mode, effectively guarantee the chip quality, low cost of equipment, high production efficiency, applicable to small and medium enterprises, hotels, restaurants and supermarkets.

二、产品特点

Two, product characteristics

1、    自动切片/砍排机构紧凑，安全实用，维护清洗方便，组装灵活。

1, automatic slicing / cut exhaust mechanism is compact, safe and practical, convenient maintenance and cleaning, flexible assembly.

2、安全防护性能良好，出料槽、进料槽门打开后，转动的切刀立即停转。

2, safety performance is good, the feeding trough, feed trough after the door is opened, the cutter rotation stop immediately.

3、切割刀，智能爪子，拆卸方便。

3, the cutting knife claws, intelligent, convenient disassembly.

4、由于高效动态的进料系统，节省了进料时间。

4, because the feeding system for efficient dynamic, saves the feed time.

5、智能型切割特爪，防止产品的滑落，保证了产品的质量。

5, intelligent cutting special claw, prevent the products fall, ensure the quality of the product.

6、重要部件，如控制器，减速机，电机全部采用进口，确保产品质量。

6, the important parts such as controller, motor, reducer, all imported, to ensure product quality.

7、刀具直接与齿轮驱动马达连接，动力使用效率高。

7, direct tool and gear driving motor is connected with the power to use, high efficiency.

三、主要技术参数

Three, the main technical parameters

产品型号 Tw-kp95

The product model Tw-kp95

最大成品体积（mm³） 170*170*640

The largest product volume (mm fand) 170*170*640

切割厚度（mm） 1-40

Cutting thickness (mm) of 1-40

切割速度(片/分钟) 160

Cutting speed (/ min) 160

额定电压（V） 380

Rated voltage (V) 380

额定频率(Hz) 50

Rated frequency (Hz) 50

功率（kw） 3

Power (kw) 3

外形尺寸（mm） 1650*670*1260

Outline dimension (mm) 1650*670*1260

重量(kg) 400

Weight (kg) 400
