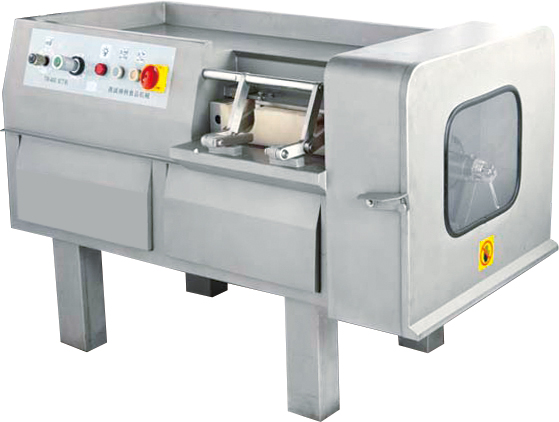

TW-RD系列自动切肉丁机

TW-RD series automatic meat cuber

用途：本机可将0～-5℃的冻肉块、鲜肉、脂肪、茎类蔬菜等切割成丁、条、片状，一机多用，工作效率高。广泛应用于肉食加工中心、餐饮连锁配送、机关高校食堂。

Use: This machine can be 0 ~ -5 DEG C, fresh meat, frozen meat blocks fat, stem vegetables cutting into small, strip, sheet, one machine with multifunction, high work efficiency. Widely used in meat processing center, restaurant chain distribution, agency College canteen.

特性：本机整体采用优质不锈钢材料加工制作，安全防护性能好，切割零件拆卸简易，易于清洗；网格刀具，切刀可自行拆卸而调出不同尺寸，切丁标准高；切割厚度可通过液压自行调整，以满足不同厚度的需要；预压设计，保证切出肉块的均匀。

Features: This machine adopts the whole processing of high quality stainless steel materials, safety performance is good, cutting parts disassembly is simple, easy to clean; the mesh tool, cutter can disassemble and adjust different size, dicing high standard; self adjustment by hydraulic cutting thickness, in order to meet the needs of different thickness; pre press design, guarantee the cutting the meat's uniform.

主要技术参数：

The main technical parameters:

型号 外形尺寸mm    原料最大尺寸mm 切割范围mm  产量KG/H 电机功率 机重KG

Model   mm dimensions   material maximum size mm   cutting range mm   yield KG/H   motor power machine   weight KG

TW-RD400型 1430*750*900 350*84*84 5、6、7、8、10、12、16、24、30 300-500 380V，3.0KW 320

TW-RD400        1430*750*900    350*84*84       5, 6, 7, 8, 10, 12, 16, 24, 30  300-500 380V, 3.0KW     320

TW-RD600型 1780*940*1030 550*120*120 5、6、7、8、10、12、16、24、30 600-800 380V，3.7 KW 560

TW-RD600        1780*940*1030   550*120*120     5, 6, 7, 8, 10, 12, 16, 24, 30  600-800 380V, 3.7 KW    560
