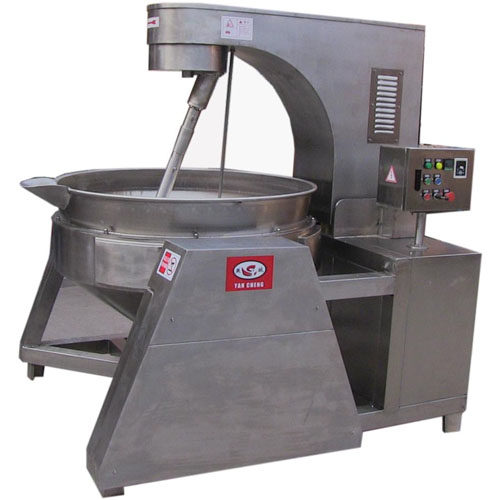

全自动行星式搅拌锅产品简介

Full automatic planetary stirring the pot products introduction

一、产品简介

One, product introduction

该系列产品采用不锈钢锅体，凡与食品接触的零、部件均采用不锈钢材料制造并进行抛光处理；搅拌系统采用自转公转相结合的方式其传动比为不整数传动比，保证锅内无任何搅拌死点。该系列设备自动/液压型是利用液压推力使搅拌臂翻转，免拆装搅拌器，再利用液压推力倾翻锅体，易于进出原料节省人力；采用无级变频调速器能将高粘度产物混合均匀加热提高热量，具有易于操作，工作效率高，耗能低，使用寿命长，结构紧凑，维修方便等特点，是性能优良的搅拌机。

The series of products adopt the stainless steel pot body, where contact with food, zero, parts are made of stainless steel and polishing treatment; ratio is not integer drive agitation system by rotation and revolution of the way of the combination of the drive, to ensure that the without any stirring dead. This series of equipment automatic / hydraulic type is the use of hydraulic thrust of the mixing arm turning, free disassembly blender, then use hydraulic thrust tilting pan body, easy to import raw materials saving manpower; adopts stepless frequency conversion governor to improve high viscosity products mixed heat evenly heating, with easy operation, high work efficiency, low energy consumption, service life long, compact structure, convenient repair, is the excellent performance of the mixer.

二、技术参数

Two, the technical parameters

锅体容积

The volume of the pot body

/L 电机功率

/L motor power

/KW 转速/min 搅拌形式 起臂

/KW speed /min mixing form up arm

/翻锅形式 加热形式 外形尺寸mm

/ turn pot heating mode shape dimension mm

300L 380V/2.2KW 20-25 行星/刮底 自动/液压 燃气 2100*2000*1950

300L 380V/2.2KW 20-25 planet / scraping bottom automatic / hydraulic gas 2100*2000*1950

500L 380V/3KW 20-25 行星/刮底 自动/液压 燃气 2250*2150*2100

500L 380V/3KW 20-25 planet / scraping bottom automatic / hydraulic gas 2250*2150*2100
