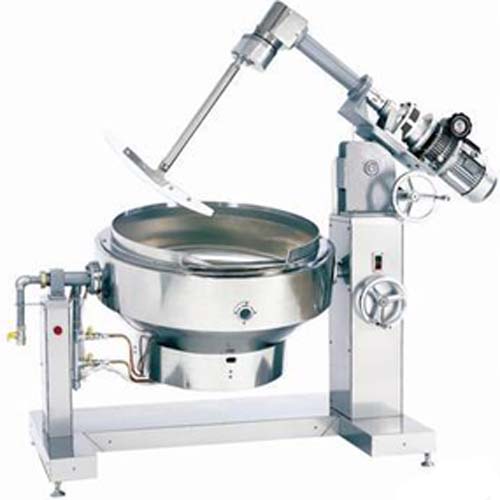

可倾式行星搅拌燃气锅产品简介

Tilting of planetary stirring gas cooker products introduction

一、本机特别适合物料的熬煮炒制，被广泛用于餐饮、食品加工、卤制品、调味品加工、休闲食品行业等领域。

One, the machine is especially suitable for the material boiling frying, widely used in food and beverage, food processing, halogen products, spices processing, leisure food industry.

二、主要结构：

Two, the main structure:

    由全不锈钢机架、整体不锈钢板封闭系统、节能燃烧器、加厚304不锈钢板模压锅体、和锅体倾倒系统、耐热保温装置、可提升全不锈钢行星旋转机械手，无级调速动力传输系统等组成。

Full stainless steel can improve the planets revolving manipulator is composed of stainless steel frame, integral stainless steel plate closed system, energy-saving burner, thickening of 304 stainless steel plate molding pot, and the pot body, heat insulation device, pouring system, a stepless speed regulation power transmission system.

三、功能特点

Three, function characteristics

1、全不锈钢结构，整体封闭无死角；

1, all stainless steel structure, the overall closed without dead angle;

2、锅体采用加厚304不锈钢板模压成型；

2, the cooker body adopts thickening of 304 stainless steel plate molding;

3、独特的节能燃烧器燃烧充分、热效率高；

3, energy-saving burner unique full combustion, high thermal efficiency;

4、内装耐热保温装置，使用更节能，热效率可达70%以上；

4, built-in heat insulation device, the use of more energy saving, thermal efficiency can reach more than 70%;

5、锅体方便倾斜、出料、清洗十分方便；

5, the pot body tilt, discharging, convenient cleaning is very convenient;

6、可提升不锈钢行星旋转机械手炒制、加无级调速动力传送系统、使物料炒制更均匀、刮锅底无死角无盲区；

6, can promote the stainless steel planetary rotation mechanical hand frying, and stepless speed transmission system, to make the material more uniform, scraping the bottom of the pot fried without leaving no blind area;

7、加工量大、可以连续作业，节省人力和降低劳动强度。

7, big processing quantity, continuous operation, save labor and reduce labor intensity.

四、技术参数

Four, the technical parameters

型号 锅体容积

Models of the pot body volume

/L 锅体直径

/L pot body diameter

/mm 电机功率

/mm motor power

/KW 起臂

/KW arm

/翻锅形式 转速 热负荷 燃气耗量 外形尺寸

/ turn pot form speed thermal load gas consumption dimensions

YC-RJS300 300L φ1000

YC-RJS300 300L 1000

380V  1.5KW

380V 1.5KW

手动 自转：12-60rpm;

Manual rotation: 12-60rpm;

公转：8-40 rpm 81.4kw=

The Revolution: 8-40 rpm 81.4kw=

70000kcal/h 液化气 6.3kg/h 2400*1300*2060

70000kcal/h 6.3kg/h liquefied gas 2400*1300*2060

天然气 6.2kg/h

Natural gas 6.2kg/h

管道煤气 10.7kg/h

Gas pipeline 10.7kg/h

管道煤气 10.7kg/h

Gas pipeline 10.7kg/h
