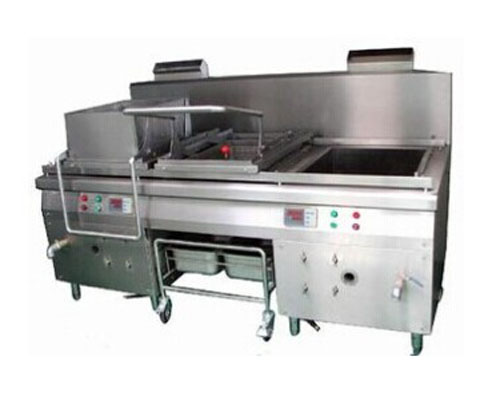

双缸电热油炸机

Double cylinder electric frying machine

简介

Introduction

1.用途：

1 use:

  广泛适用于炸鸡，鱼，花生米，蔬菜，面食，薯片等食品加工企业和大，中，小型宾馆，饭店，招待所，学校，单位食堂等餐饮服务行业。

Widely applicable to fried chicken, fish, peanuts, vegetables, pasta, potato chips and other food processing enterprises and big, in, small hotels, hotels, hostels, schools, canteens and other food service industry.

2.特点：

2 characteristics:

（1）操作简单，使用方便，故障率少。

(1) has the advantages of simple operation, convenient use, low failure rate.

（2）自动控温，加热均匀，温度偏差小。

(2) automatic temperature control, uniform heating, low temperature deviation.

（3）一机多用，可炸多种食品。油烟少，方便，省时，环保。

(3) the use of a machine, a variety of food can be fried. Smoke less, convenient, time saving, environmental protection.

3.机器参数：外形尺寸：1280*700*1100

3 the machine parameters: Dimension: 1280*700*1100

              功率：380V/12-24KW

Power: 380V/12-24KW

配有双筐

Equipped with double basket

型号 额定功率（kw） 额定电压(V) 单槽容油量(L) 工艺 重量(kg) 外形尺寸( mm)

Model rated power (kw) rated voltage (V) single groove oil capacity (L) process of weight (kg) size (mm)

YC-YZ2

YC-YZ2

油水分离电炸锅（双缸） 24kw 380V 60 油水混合 150 1280*700*1100

The oil-water separation fryer (double cylinder) 24kw 380V 150 1280*700*1100 60 oil-water mixture

4.结构原理

4 structure principle

本产品采用油水混合加热工艺，根据油水的密度差，油分离在上层，水在下层，可有效分离油炸，使油有效的循环利用，油炸机采取中部加热方式可使油均匀受热，高效利用。

This product uses the oil-water mixture of heating process, according to the oil-water density difference, separation of oil in water in the upper, lower, and can effectively separate the frying oil, make effective recycling, frying machine adopt central heating mode can make the oil evenly heated, efficient utilization.
