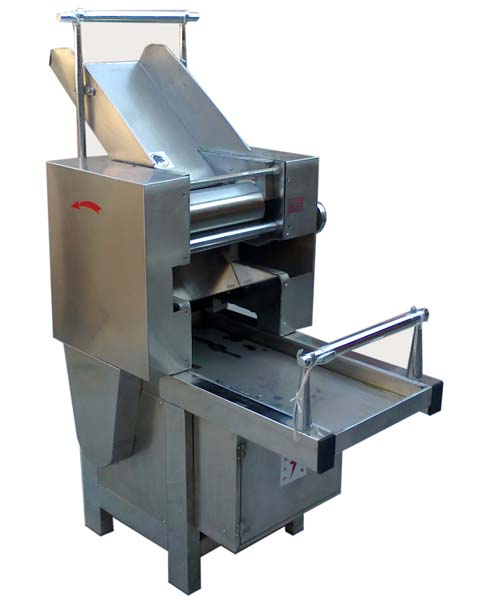

YC-MY80型面条机

YC-MY80 type noodles machine

用途：本机可将面类物料自加工成面片或面条形状。

Use: This machine can be surface material from processed into patches or noodles shape.

特点：设备采用O型皮带和齿轮及滚动轴承传动，具有结构紧凑、运行平稳、安全节能、效率高、操作方便的优点。

Features: the equipment adopts O type belt and gear and rolling bearing transmission, has the advantages of compact structure, stable operation, safety and energy saving, high efficiency, convenient operation.

适用范围：设备可用于面食加工厂、部队食堂、餐饮公司等。

Scope of application: the device can be used for wheaten food processing factory, army canteens, catering company etc..

工作原理：物料通过两棍向内旋转挤压成面片或面条。

Working principle: material through the two stick inward rotating extrusion into patches or noodles.

技术参数：

Technical parameters:

轧辊规格：Φ120×260mm

Roll specifications: Phi 120 * 260mm

切面宽度：1-10mm

Section width: 1-10mm

切面厚度1-3mm

Section thickness 1-3mm

轧辊转速：32r/min

Roll speed: 32r/min

配套动力：1.5kw/380v

Auxiliary power: 1.5kw/380v

工作效率：80-100 kg/h

Efficiency: 80-100 kg/h

外形尺寸：880*600*1450mm

Size: 880*600*1450mm

材    质：采用不锈钢加工制作

Material: stainless steel manufacture
