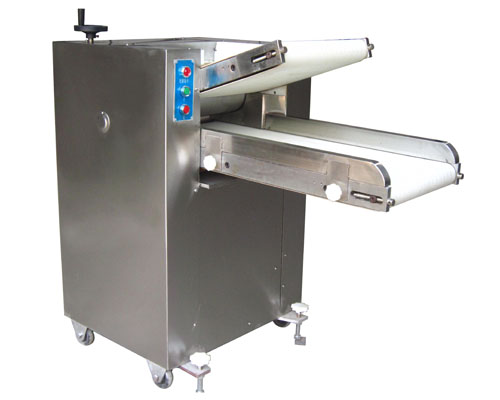

YC-MY350型压面机

YC-MY350 type pressing machine

压面机是食品加工的主要设备之一，主要用于揉压各种酥。韧性面团及面皮，广泛用于单位食堂，宾馆，饭店，面食加工单位。也是配置馒头加工的理想设备。面皮厚度可在一定范围内无极调整经过揉压的面团制作的食品膨松、香甜、增白、口感好。

Pressure machine is one of the main food processing equipment, mainly used for kneading a variety of cakes. The dough and dough tenacity, widely used in hotels, restaurants, canteens, wheaten food processing unit. The ideal equipment is the configuration Steamed buns processing. Leather thickness in a certain range stepless adjustment after kneading dough making food leavening, sweet, whitening, taste good.

技术参数：

Technical parameters:

外形尺寸：1050*600*1100

Size: 1050*600*1100

轧辊调整范围：1-25mm

Roll adjusting range: 1-25mm

轧辊转速：76r/min

Roll speed: 76r/min

额定功率：2.2kw

Rated power: 2.2kw

额定电压：３８０ｖ

Rated voltage: 380V

额定频率：５０Ｈｚ

Rated frequency: 50Hz

轧辊尺寸：Φ１１８×３５０ｍｍ

Roll size: Phi 118 * 350mm

普通V带:A1219-2

Common V belt: A1219-2

配用电动机:Y90L-41.5KW  防水等级: IP×1

The motor: Y90L-41.5KW waterproof grade: IP * 1
