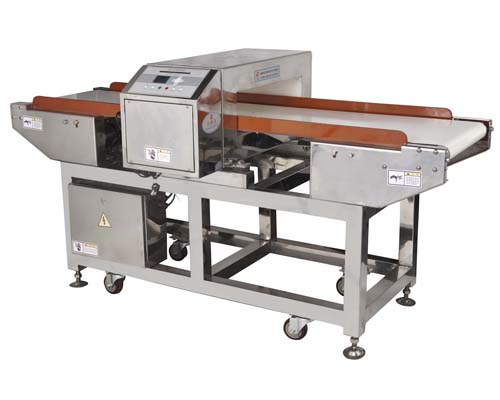

金属探测仪简介

Introduction of metal detector

用途：本机利用电磁感原理来探测小食品、化工产品、服装、制鞋、海洋水产、渔业、干鲜水产、面食、冷冻食品、干鲜蔬果、糖、茶、药品等行业的金属异物，检测原料或产品中夹杂或漏落的铁、非铁、铅等各种金属杂质等。

Use: the machine by using electromagnetic induction principle to detect the small food, chemical products, garments, shoemaking, marine aquaculture, fishery, dry and fresh aquatic products, frozen food, dried pasta, fresh Vegetable & Fruit metal foreign body, sugar, tea, medicine industry, inclusions or hoods detection of raw materials or products of iron in non iron, lead, other kinds of metal impurities.

原理：设备有很高的探测灵敏度；铁磁类金属进入探测区域将影响探测区域的磁力线分布，进而影响了固定范围的磁通。非铁磁类金属进入探测区域将产生涡流效应，也会使探测区域的磁场分布发生变化。

Principle: the equipment detection sensitivity is high; the ferromagnetic metal into the detection region will affect the distribution of magnetic line of force detection zone, thereby affecting the flux of fixed range. The vortex effect of non ferromagnetic metal into the detection region, also can make the distribution of magnetic field change detection zone.

特点：

The characteristics of:

最先进的DSP处理芯片，超高灵敏度；

The most advanced DSP processing chip, super high sensitivity;

智能液晶显示功能，智能操作系统，功能更强大；

Intelligent liquid crystal display function, intelligent operating system, more powerful;

较强的稳定性，超强的抗干扰能力和适应能力；

Strong stability, strong anti-interference ability and ability to adapt;

符合HACCP体系，QS体系和ISO体系相关技术指标；

In accordance with the HACCP system, the related technical indexes of QS system and ISO system;

双路信号探测电路合并技术，准确探测铁与非铁金属杂质；

Dual signal detection circuit with technology, accurate detection of ferrous and non ferrous metal impurities;

双路信号显示功能；会根据金属大小显示不同的感应强度；

Dual signal display function; according to the metal size display different induction;

输送带及托板采用符合美国“FDA”标准的白色无毒材料；

Conveyor and pallet use white nontoxic materials that meet the FDA standard;

IP65的防水等级，适应于潮湿、高温及低温工作环境；

Waterproof grade IP65, adapted to the humid, high temperature and low temperature working environment;

采用无极调速马达，输送带速度随意调；

Adopting stepless speed regulation motor, belt speed adjusted;

全不锈钢材质，美观大方；

All stainless steel, beautiful appearance;

技术参数：

Technical parameters:

外形尺寸：1600*730*860 mm

Size: 1600*730*860 mm

控测口径：460*500mm

Control measuring diameter: 460*500mm

探测灵敏度：Feφ3.0mm SUS φ4.5mm Non-Fe φ3.0mm

Detection sensitivity: Fe 3.0mm SUS 4.5mm Non-Fe Phi Phi Phi 3.0mm

控测方式：电感应

Control mode: electric induction

报警方式：声光报警

Methods: the alarm sound and light alarm

电机功率：220V，120W

Motor power: 220V, 120W

机器重量：200KG

Machine weight: 200KG
