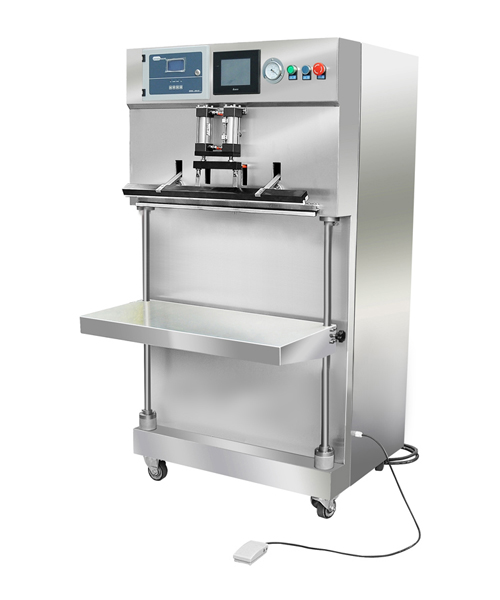

气调保鲜包装机简介

Adjustable gas introduction fresh-keeping packaging machine

用途：气调包装是一种新型食品保鲜技术，采用保护性混合气体（通常为CO2、N2、O2）置换包装内的空气，利用各种保护性气体所起的不同作用，抑制引起食品变质的大多数微生物生长繁殖，并使活性食物（果蔬等植物性食品）呼吸速度降低，从而使食品保鲜并延长保鲜期。

Use: modified atmosphere packaging is a new technology for food preservation, protected by the mixed gas (usually CO2, N2, O2) replacement packaging in the air, different role played by the use of various protective gas, inhibition of microbial food spoilage caused most of the growth and reproduction, and the activity of food (fruits and vegetables and other plant food to reduce the rate of breathing), so that fresh food and prolong the storage period.

特点：

The characteristics of:

1、气调包装具有使食品保质、保鲜、保色、保形、保味的特点，风靡欧美市场。

1, modified atmosphere packaging with the food quality, freshness, color retention, conformal, security flavor characteristics, popular in Europe and America market.

2、采用电、气、机控制，由可编程序控制器（PLC）配合触摸屏实现人机界面对话，各部分动作及控制参数均可由PLC设定、修改。控制方便可靠 (内部操作系统同贵公司目前使用的自动盒式气调保鲜包装机。

By 2, electricity, gas, machine control, the programmable logic controller (PLC) with touch screen to realize man-machine interface dialogue, action and control parameters of each part can be set by PLC, modify. Convenient and reliable automatic control (modified atmosphere fresh-keeping packing machine internal operating system with your company currently in use.

3、将装有物品的塑料袋袋口套入充气嘴，抽真空、充气、封口等自动完成。

3, will be fitted with a plastic bag is sheathed in goods inflation nozzle, vacuum pumping and inflating and sealing automatically.

4、机架等主要构件均由不锈钢制造，符合食品卫生要求。

The 4 main components, frame are made by stainless steel, in line with food hygiene requirements.

5、工作台架高度可调，适应1—50kg不同包装袋要求,尤其适用于大袋子包装。

5, work bench height adjustable, adapt to 1 - 50kg packing bags of different requirements, especially for large bag packing.

技术参数：

Technical parameters:

型号 封口尺寸mm 电机功率 工作气压 外形尺寸mm 包装能力

Type sealing size mm motor power working pressure mm dimensions packaging capacity

YC-CD600 600 380V/1.2 KW 0.6-0.8Mpa 800*900*1700 500-1000KW/H

YC-CD600 600 380V/1.2 KW 0.6-0.8Mpa 800*900*1700 500-1000KW/H
